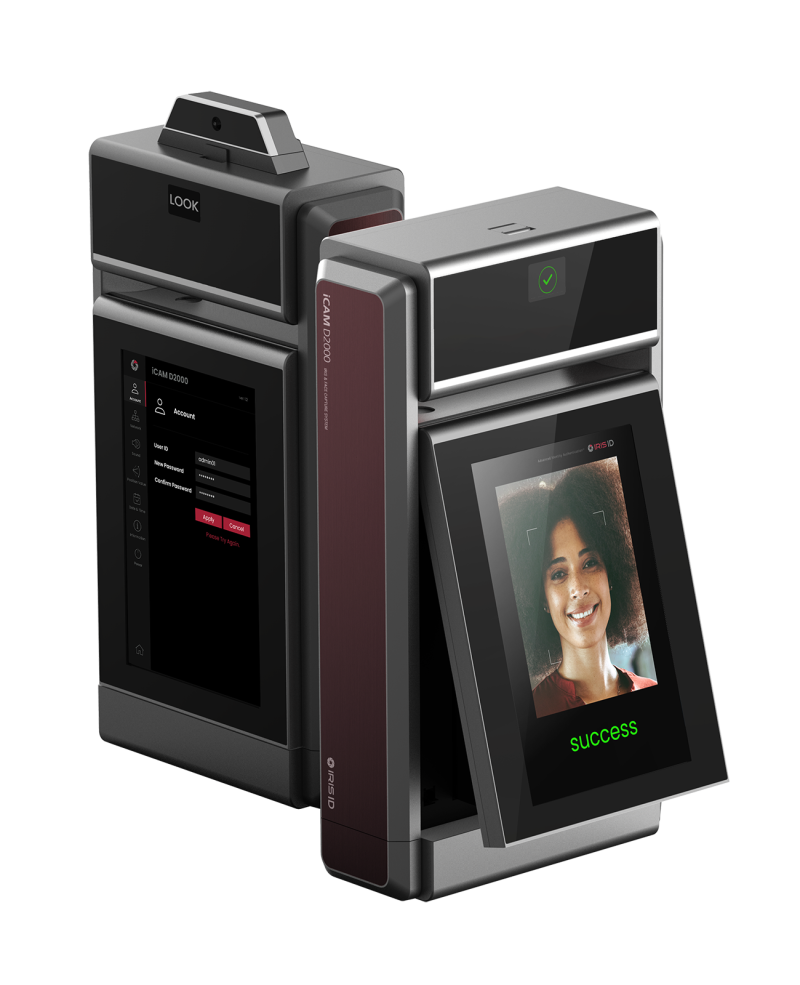

Compact, insightful, and unparalleled quality in biometric performance, Iris ID’s iCAM D2000 represents a new class of fused iris and face identification systems. Flexible capture distance ranging from 50cm to 1.0m, iCAM D2000 provides an ergonomically intuitive user experience while delivering high quality iris and face images for enrollment and identification. With focus on usability and dimensions the iCAM D2000 is ideal for identity, travel and access solutions.
The iCAM D2000’s unique feature set is the result of twenty plus years of research and development. Leveraging the experience from processing billion of identities and Iris ID’s extensive product line, iCAM D2000 is both a natural and innovative next step in technology evolution. The ultimate biometric fused iris and face solution. The iCAM D2000 is truly a platform independent solution.
Iris ID provides a robust REST API to enable all functions of the iCAM D2000 . The development environment and functionality of the REST API is both robust and simple . Application developers will find the REST API’s easy to implement.
Fusion of face and iris recognition into a single capture process
It’s fast, compact, accurate, fictionless and supports global standards.
Product Features
Multimodal Biometric
Automatically captures dual iris and face at the same distance.
User Height Accommodation
Automatic capture range from 1.2m to 2.1m
Countermeasure for Security
A proven set of anti-spoof measures that continues to set the standard for the industry.
Installation Flexibility
The device can be used with a mounting option that can be fixed to a desk.
Enhanced Capture Range
Range 50 –100cm. Auto Zoom, Pan and Focus. High quality optics.
Intuitive User Guidance
10.1 inch high LCD display provides user feedback.
Mask Detection
The device can detect a user’s mask.
Standards Compliant
Standards Compliant Hardware and Software: CE, FCC, Eye Safety, ISO and ICAO, RoHS
Technical Specifications
Basic
| CPU | Cortex-A53 |
| Storage | 2GB DDR3 (1866 Mbps, 1.35 V), 8GB eMMC |
| OS | Embedded Linux |
| FPGA | Spartan6 + 64MB Flash Memory |
| Power | DC24V 3A |
Display
| Size | 10.1 Inch (Diagonal) LCD with capacitive touch screen |
| Resolution | 1280 x 800 |
| Interface | MIPI DSI |
Audio
| Codec | Various sample rate (8 – 48 KHz) |
| Speaker Out | YES |
Camera
| Face Camera | ISO 29794-5 Compliant |
| Iris Camera | ISO 29794-6 Compliant |
| Stereo Camera | 2.3MP, BW, Global Shutter x 2 |
| Capture Time | Less than 1 seconds for dual iris and face capture |
Illumination
| IR LED | ISO 29794-6 Compliant |
External Interface
| Ethernet | Ethernet 10/100 Mbps |
| USB | USB2.0 Host/OTG |
| Memory | Micro SD Socket |
Mechanics
| Pan / Tilt Motor | Precision High Speed Step Motor |
| Iris Camera Lens | Zoom & Auto Focus |
Capture Volume
| Height (Tilt) | ± 45cm (120cm – 210cm at 75cm when table height is 117cm) |
| Width (Pan) | ± 50cm at 100cm, ± 25cm at 50cm |
| Distance | 50cm – 100cm |
Size
| H x W x D | 41.8cm x 23.7cm x 10.45cm (16.5” x 9.3” x 4.1”) |
| Weight | 8.8kg (19.4lbs) |
Operating Environment
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Storage Temperature | -4°F – 203°F (-20°C – 95°C) |
| Humidity | 5 – 95% non-condensing |
Mechanical Drawing
Capture Volume
