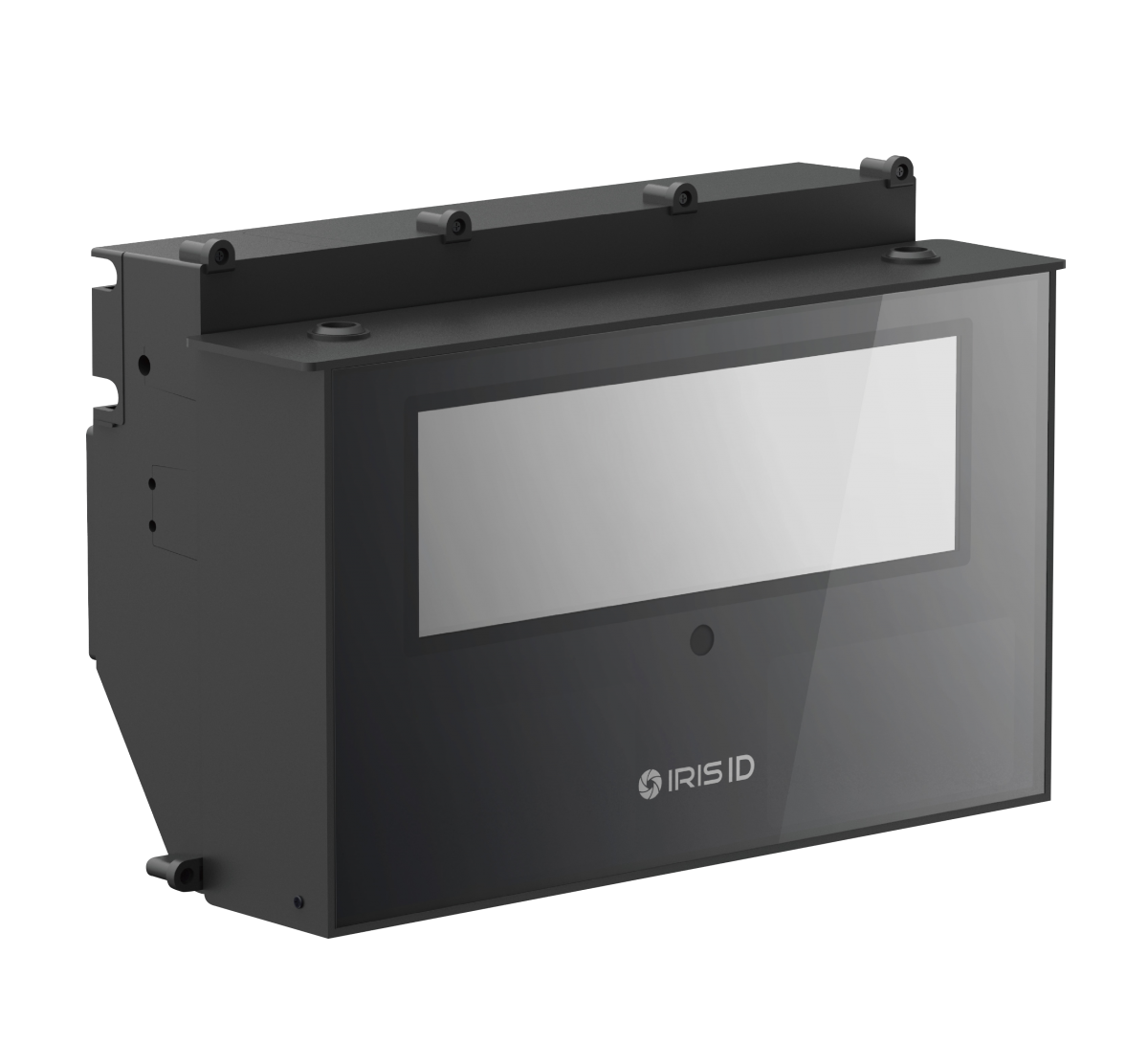

OU75
OEM Iris Recognition Camera Module
Capture Iris Images in Virtually Any Environment
Iris ID has been producing commercial iris recognition systems since 1997. In thousands of locations, IrisAccess® authenticates the iris identity of more persons than all other iris platforms combined. Iris ID’s rich experience in iris recognition is exemplified in the OU75.
The iris recognition camera system does not require significant cooperation from the subject to capture high quality iris images. Iris ID has developed a series of algorithms which provide the capability to capture iris images in virtually any environment.
High Speed – Dual Iris Capture
The OU75 automatically performs dual iris capture and outputs high quality ISO standards compliant images. Both eyes can be simultaneously captured. The OU75 provides an unparalleled user interface, which makes the process easier for the user and operator.
Features
- Large Volume Iris Capture in a compact package
- National ID Quality Iris Image – Standards Compliant
- Intuitive Mirror User Interface
- Comfortable Capture Distance 75 +/- 25 cm (~30 +/- 10″)
- Flexible Installation Options
- 12 VDC Power
Use Case
Turkmenistan Airport
OEM Applications
- Kiosks
- Smart Kiosks
- ATM
- VTM
| Model Number | Description | Color |
| OU75 | USB | Black |
OU75 SDK
Iris ID provides an API SDK to enable all functions of the OU7S-AK. The development environment and functionality of the SDK for the OU7S-AK module closely mimics those of the widely deployed iData SDK for the IrisAccess iCAM series cameras. Application developers familiar with the other Iris ID development tools will find integration to be very simple.
SDK Versions
Three versions of the SDK are available:
- Image Capture only
- Image Capture & Quality Metrics
- Image Capture, Quality Metrics and Matching
Sample Application Source Code
The sample application source code is delivered as a part of the SDK. Sample SDK code is provided in C++ and C#.
Demonstration Application
A runtime only application is available for customer evaluation which provides the functionality to perform iris image capture and iris template matching.
Technical Specifications
| Dimensions (WxHxD) | 222x147x95mm |
| Weight | 4kg (8.8lbs) |
| Power Input/ Consumption | 12VDC, 2.0 Amps @ 12VDC / 15W MAX |
| Iris Operating Range Indicator | None |
| Voice Indication | Available by download |
| Iris Capture Range | 28cm~38cm (11“~15”) |
| Flash | None |
| Face Image Camera | None |
| Operating Temperature | 0°C – 45°C (32°F – 113°F) |
| Storage Temperature | -20°C – 95°C (-4°F – 203°F) |
| Humidity | Up to 90% non-condensing |
| Iris Camera Mounting | Provided by OEM |
| Communications | USB |
| Equipment Supplied with OU75 | Instruction Manual – Quick Start Guide |
| iData SDK | OU75 Device Control SDK license |
| Power Supply Optional | iCAM 7 PWR |
| Certifications | CE, FCC, KC, Eye Safety, ISO Standard, KISA |
Items Required for Use of This Product
Required Equipment (not provided by Iris ID)
Windows based PC (Windows 7 (32/64-bit) / Windows 10 (32/64-bit)
Minimum Computer Requirements
- Microsoft Windows 7 (32-bit), or Windows 7 (64-bit) OS
- 512MB RAM (or higher)
- x86 Processor, 2.0 GHz (or higher)
- 2GB available HDD space or above
- Microsoft .NET Framework ver. 3.5
- Mouse, SVGA Monitor, Keyboard
- Dedicated USB 2.0 port (or higher)
- 10/100 Base-T Ethernet Port
NOTE: An available and dedicated USB 2.0 compliant port is needed to properly use the OU75

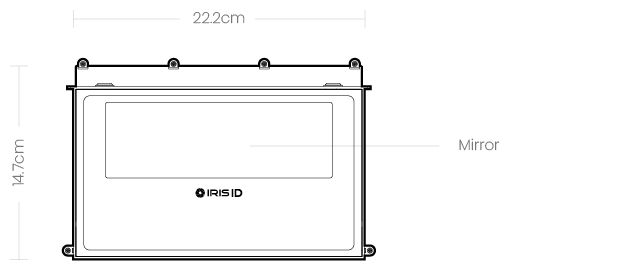

Front View

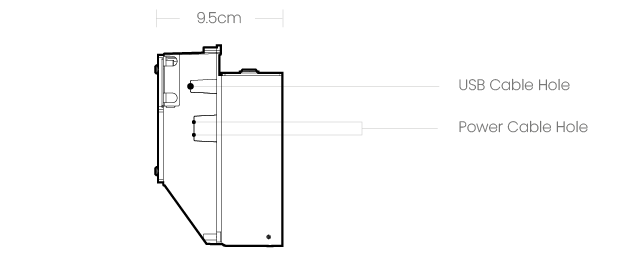

Side View

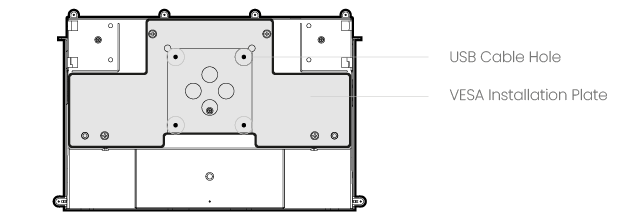

Rear View
