IrisAccess iA1000 – Multimodal Iris & Facial Recognition Identity Authentication
The IrisAccess® iA1000 series is Iris ID’s latest non-contact access control device that authenticates users with our Iris-Face Fusion technology. This latest generation optical system brings a fast, contact-free, and simple user experience on a circular LCD screen. The result is an exceedingly accurate biometric image acquisition and even faster authentication.
Available in two configurations designed to support nearly every vertical market, each model features dual iris and face cameras, a new circular user guidance display, LCD touchscreen, Wi-Fi and PoE capabilities, and OSDP and Wiegand protocol support. Our industry-leading data and access security, including AES 256-bit encryption and Presentation Attack Defense (PAD), is standard. An advanced built-in card reader, optionally available, supports multiple card formats and mobile credentials.
 |
IRIS-FACE Fusion Operates in Iris only, Face only, Iris and/or Face, Iris-Face fusion mode |
 |
Presentation Attack Detection (PAD) Proven set of anti-spoof measures that continue to set the standard for the industry is included |
 |
Simultaneous Biometric Capture Automatically captures both irises and face simultaneously, at the same distance |
 |
Non-Contact & Easy Authentication Automatically captures faces and irises up to 60cm (24″) |
 |
Intuitive User Feedback Display New circular LCD provides user guidance for fast authentication |
 |
Accommodates All User Heights The optical system automatically adjusts the user’s heights and is ADA 508 compliant |
 |
Enhanced Capture Range Wide recognition range of Iris 30–60 cm (12–24”) & Face 30–80 cm (12–32”) |
 |
Standards Compliant Complies with IEC 62471:2006, UL 294, CE, FCC, KC, ROHS, UKCA |
 |
Advanced Security Supports comprehensive data encryption, advanced network security, and secure boot |
Benefits
- Capture range distance 30 cm – 80 cm
- Available in two configurations
- Built in card reader that supports multiple formats and mobile credentials
- Use Cases including Access Control, Manufacturing, Construction, Large Scale ID, Public Security, Healthcare
Tech Specs
| Hardware Features | |
| Model Type | Iris & Face Recognition Reader |
| Authentication Speed | Less than 2 seconds for Dual Iris & Face Capture |
| Height | Wide recognition range of Iris 30–60 cm (12–24”) & Face 30–80 cm (12–32”) |
| Unit Dimensions | |

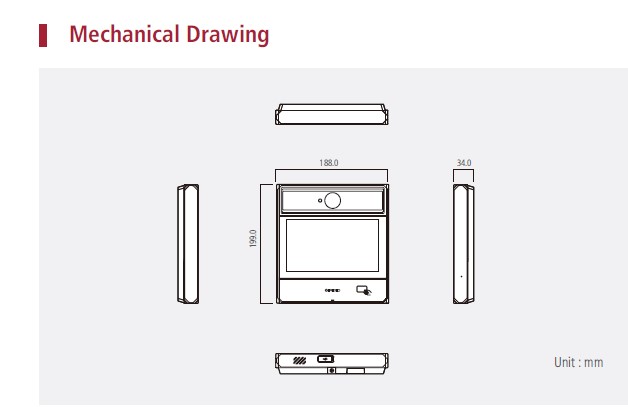

| Dimensions (W x H x D) | 18.8 cm x 19.9 cm x 3.4 cm (7.4” x 7.8” x 1.3”) |
| Weight | 810 g (1.8 lbs) |
| Optics | |
| Iris | 2 x 5 MP B/W CMOS image sensor |
| Face | 13 MP |
| Interface | |
| User Capacity | Up to 100,000 users |
| Connectivity | Ethernet, Wi-Fi , BLE (optional) |
| Application S/W | |
| Algorithms | Iris Recognition Face Recognition Iris/Face PAD Lens Detection Face Mask Detection Eyeglasses Detection |
| Operational Software | Capture Iris and/or face images Iris image standard (ISO 19794-6) Face image standard (ISO 19794-5) iData Iris SDK – Iris ID Matching Algorithm (optional) |
| Operating Environment | |
| Operating Temperature | 32°F~113°F (0°C~45°C) Storage Temp Humidity |
| Storage Temperature | -4°F~194°F (-20°C~9o°C) |
| Humidity | 5~95% non-condensing |
IrisAccess Management Suite (iA-MS)
iA-MS™ is a centralized web-based application for managing iA1000 devices, users, and transaction logs. It offers a user-friendly graphical interface (GUI) that simplifies configuration and monitoring tasks, making it accessible for users of all technical aptitudes. Using REST APIs, the application enables real-time data exchange and efficient management of iA1000 devices. Operators can easily authenticate and activate iA1000 devices, track activities, and review transaction logs, all from an intuitive interface that requires minimal training. This solution is ideal for enterprise level applications to provide device and user management from single- or multi-location environments to meet your access control needs.
Technical Overview
